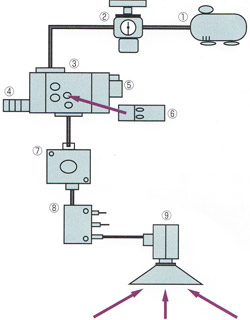

TVA関連製品と特徴-standard piping example(type TVA)-

カタログを見る
TVA関連製品と特徴-standard piping example(type TVA)-の画像

エジェクタの原理

  • 1) 圧縮空気を一次側から供給する。
  • 2) 圧縮空気の高速流により、各蚕室の圧力が低下し、二次側の空気が流れ込む。
  • 3) 一次側と二次側の混合気体はディフューザを通り排気する。
  • Compressed air is supplied from the primary side and is blown through the Diffusion chamber at high speed and exhausted to atmosphere.Vacuum is generated in the chamber around thenozzie causing air to flow from secondary side to Exhaust.
